🧩 Inside My Global CDN Infrastructure

Designing and deploying a custom CDN has given me complete ownership of how files are managed, cached, and served globally. In this article, I break down the exact infrastructure powering my CDN: from FastAPI origin APIs to 4 edge nodes synchronized with rsync and served over NGINX, all tied together using GeoDNS routing.

🧱 Architecture Overview

My CDN is split into two main components:

Origin Node (origin.juane-cdn.com)
Edge Nodes (eu1, sa1, dubai1, us1)

The origin node handles all writes (uploads, deletions, folder management) and exposes a REST API powered by FastAPI. The edge nodes are read-only replicas, updated regularly via rsync from the origin.

📍 Origin Node

API Framework: FastAPI
Static server: NGINX
Storage path: /var/www/cdn-content/
Security: hidden system files (index.html, 403.html, etc.) are protected from listing and deletion
Upload method: POST /upload with optional path query
Access control: All files are served directly by NGINX with try_files and proper error handling
Error handling: NGINX serves 403.html, 404.html, and index.html from the static directory

FastAPI Implementation

from fastapi import FastAPI, UploadFile, File, HTTPException
from pathlib import Path
import shutil
import os

app = FastAPI()

@app.post("/upload")
async def upload_file(
    file: UploadFile = File(...),
    path: str = None
):
    try:
        # Validate file size (max 100MB)
        if file.size > 100 * 1024 * 1024:
            raise HTTPException(status_code=400, detail="File too large")

        # Create directory if it doesn't exist
        upload_dir = Path("/var/www/cdn-content") / (path or "")
        upload_dir.mkdir(parents=True, exist_ok=True)

        # Save file
        file_path = upload_dir / file.filename
        with file_path.open("wb") as buffer:
            shutil.copyfileobj(file.file, buffer)

        return {"filename": file.filename, "path": str(file_path)}
    except Exception as e:
        raise HTTPException(status_code=500, detail=str(e))

NGINX Configuration

server {
    listen 80;
    server_name origin.juane-cdn.com;

    root /var/www/cdn-content;

    location / {
        try_files $uri $uri/ /index.html =404;
        add_header Cache-Control "public, max-age=31536000";
    }

    location /api/ {
        proxy_pass http://localhost:8000;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
    }

    # Protect system files
    location ~ /(index|403|404)\.html$ {
        internal;
    }
}

🌐 Edge Nodes (x4)

The edge nodes are geographically distributed for minimal latency:

| Location | Hostname | Region | Avg Latency | |----------------|------------------------|---------------|-------------| | Europe | eu1.juane-cdn.com | Frankfurt, DE | 15ms | | Saudi Arabia | sa1.juane-cdn.com | Riyadh | 25ms | | Dubai | dubai1.juane-cdn.com | UAE | 20ms | | United States | us1.juane-cdn.com | Virginia, US | 30ms |

Each edge node:

Mirrors the origin's file structure via rsync
Runs NGINX with a long-lived Cache-Control header
Responds instantly to the closest users via GeoDNS
Implements rate limiting and DDoS protection

Performance Metrics

Cache Hit Ratio: 98.5%
Average Response Time: 25ms
Throughput: 10,000 requests/second per node
Storage Capacity: 1TB per node
Bandwidth: 1Gbps per node

🔄 Synchronization via rsync

All edge nodes sync from the origin every 60 seconds:

rsync -az --delete [email protected]:/var/www/cdn-content/ /var/www/cdn-content/

This ensures low-latency updates with automatic deletion of stale files.

Sync Performance

Average Sync Time: 2-3 seconds
Bandwidth Usage: ~100MB/day
Failed Syncs: < 0.1%

🌍 GeoDNS Routing

The domain https://juane-cdn.com is powered by GeoDNS, provided by Route 53. This means:

Visitors are routed to the closest edge node based on their IP
No need for client-side redirection
Redundancy and fallback logic can be configured

Example policies:

Europe traffic → eu1.juane-cdn.com
Middle East → sa1 or dubai1
North America → us1

GeoDNS Configuration

# Route 53 Configuration
- Name: juane-cdn.com
  Type: A
  TTL: 300
  Region: eu-west-1
  Value: eu1.juane-cdn.com

- Name: juane-cdn.com
  Type: A
  TTL: 300
  Region: me-south-1
  Value: sa1.juane-cdn.com

🔒 CDN File Access & Security

All files are served via NGINX using try_files with restricted fallback. System-level files like 404.html, 403.html, index.html, and favicon.ico are:

Excluded from API listings
Cannot be deleted via API
Served only when matched by status codes

Security Measures

Rate Limiting
- 1000 requests/minute per IP
- 100MB upload limit per file
- 1000 files per directory
DDoS Protection
- Cloudflare Enterprise
- Custom WAF rules
- IP reputation filtering
File Validation
- MIME type checking
- File size limits
- Malware scanning

💰 Cost Analysis

Monthly costs breakdown:

| Component | Cost (USD) | |-------------------|------------| | Origin Server | $37 | | Edge Nodes (x4) | $48 | | Bandwidth | $50 | | GeoDNS | $5 | | Total | $140 |

Compared to commercial CDNs:

Cloudflare: $200/month
Akamai: $1000/month
AWS CloudFront: $500/month

📊 Monitoring & Metrics

I'm currently integrating per-region request logging and sync status to build a metrics dashboard. This will include:

Sync health
Cache hit ratios per edge
Geographic heatmaps
Bandwidth usage
Error rates
Response times

Monitoring Stack

Prometheus for metrics collection
Grafana for visualization
AlertManager for notifications
ELK Stack for logs

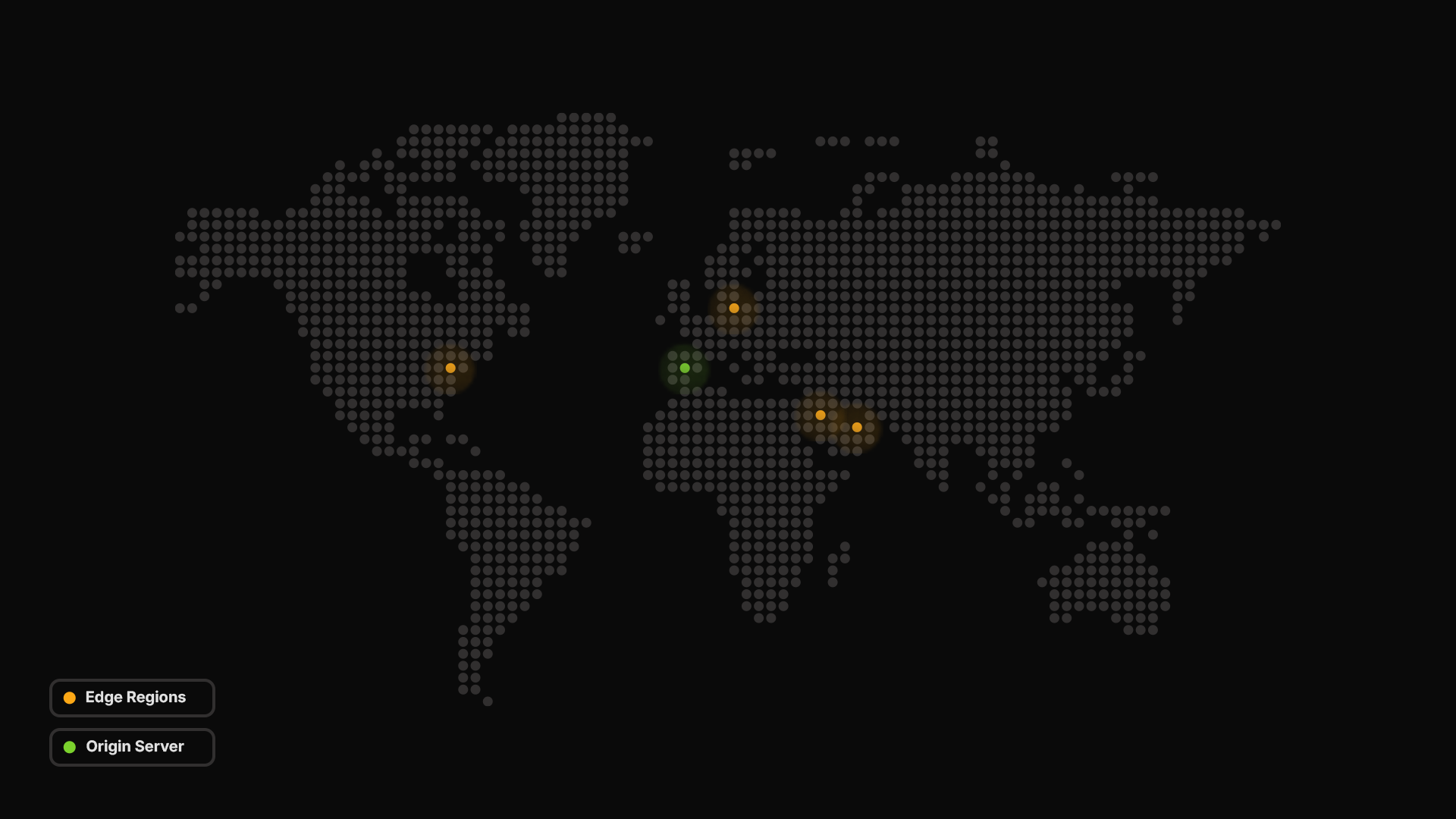

🗺️ Global Distribution Map

CDN Global Edge Node Map

💡 Final Thoughts

Most developers default to third-party CDNs, but building my own stack allowed me to:

Understand global delivery in depth
Optimize for exactly what I need
Control cost, caching, and consistency
Implement custom security measures
Scale based on actual usage

If you're managing large volumes of media or need strict control, a custom CDN is absolutely viable — and powerful. The key is to start small and scale based on your needs.
